Infinite T-II System

Leveling Foot

1. The Leveling Foot ensures that the table can be set level no matter how long it is.


2. Encasing: glass pearl blasted/anodized aluminum. Delrin Slider. Stainless steel hardware.

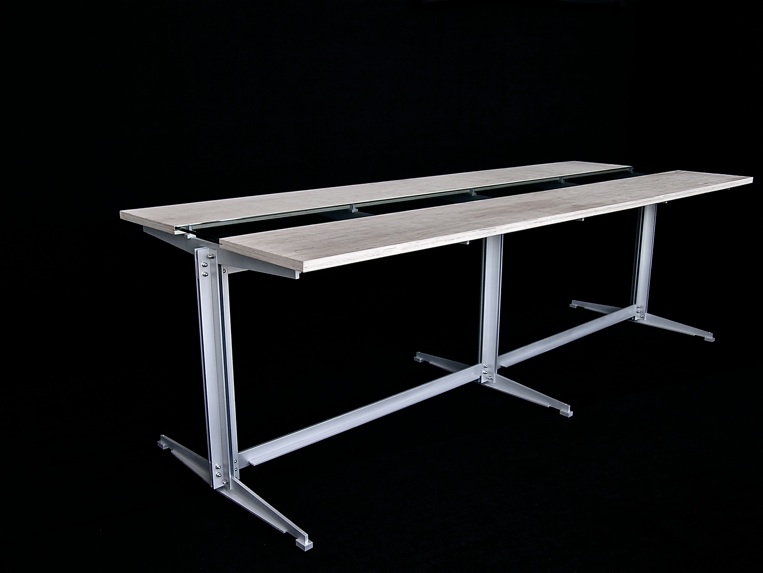

The Leveling Foot replaces the standard Non-Leveling Foot on the 8-foot (244 cm) table and all other extended lengths. Adjustable hight: +3/8” (10mm).

The aluminum casing (A) guides the Delrin Slider (B) that holds a disc with a set screw (C). To level the table one has to insert a hex key through the threaded hole (D) into the socket of the screw and turn it clockwise or counter clockwise.

A

B

C

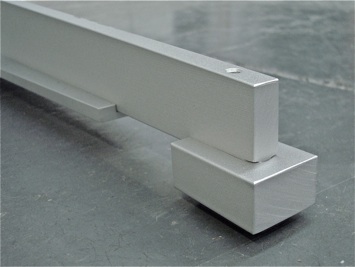

Encircled area with Leveling Foot enlarged.

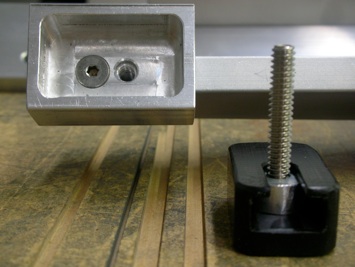

The Leveling Foot is disassembled into its components.

A

A

B

C

D
