Infinite T-II System
Insert
-
Double platforms, slidable. All glass pearl blasted/anodized aluminum. Steel ball bearing slides with clear zinc finish. Stainless steel hardware.
The usable surface of the top platform measures 21-1/2” (54.6 cm) W x 12-1/4” (31.1 cm) D and the height (between the top of the aluminum plate and the glass) measures 2-1/8” (5.4 cm).
The usable surface of the bottom platform measures 20-1/4” (51.4 cm) W x 12-1/4” (31.1 cm) D and the height measures 1-3/4” (4.4 cm).

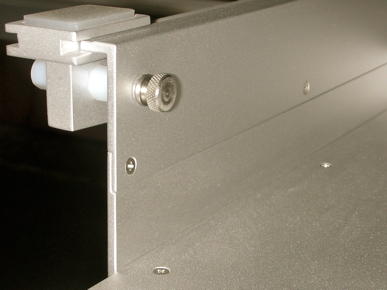

The insert slides into the grooves of the glass holder shoes (A) and two thumb screws (B) on either side secure it to the main frame (C).
The insert with the two sliding platforms is meant to extend the table’s amount of usable horizontal work surface without expanding its footprint. The platforms can be used for mobile computers, keyboards, mice and other gadgets needed in the office environment.
A
B
C

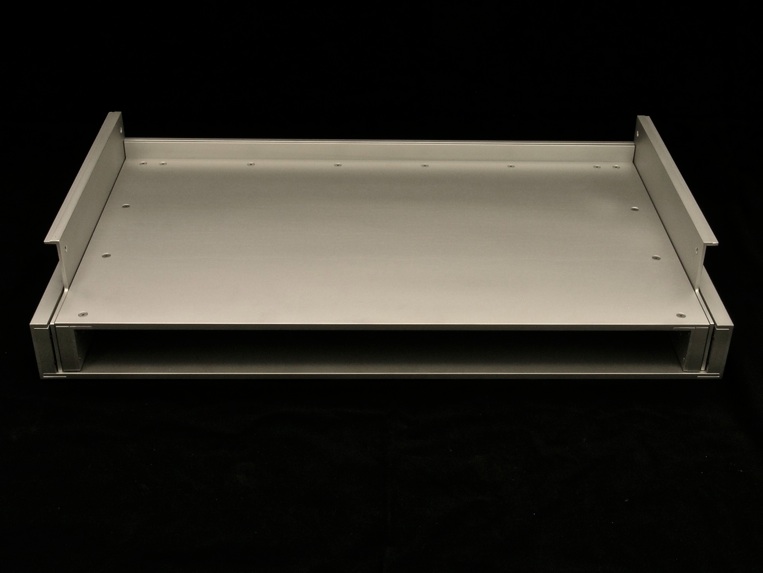

Top and bottom platforms retracted.

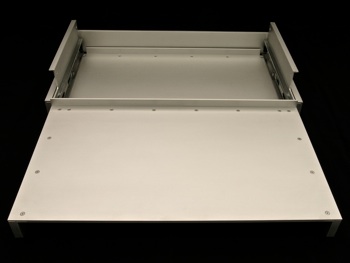

Top platform extended. Bottom platform retracted.

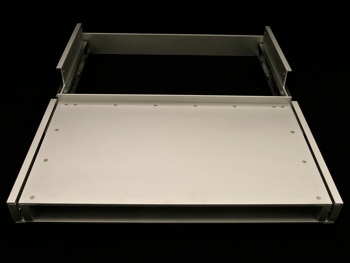

Top platform retracted. Bottom platform extended.
Top and bottom platforms retracted.
Top and bottom platforms retracted.

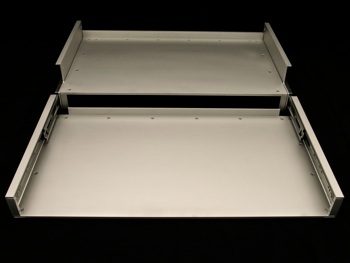

Top and bottom platforms extended.
