Infinite T-II System

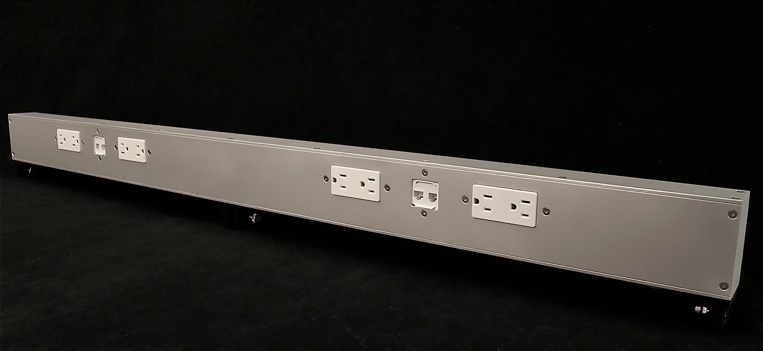

Power/Data Supply Strip
-
-
A single unit spans a four foot section (122 cm) on one side of the table and clips onto the table’s main frame. The sections can be added at will and its wiring connected very easily.
-
Encasing: all glass pearl blasted/anodized aluminum. Standard Power and Data receptacles. Neoprene brackets. Stainless steel hardware.
Each Power/Data Supply Strip measures 46-3/16” (117.3 cm) L x 1-7/8” (4.8 cm) W x 3-1/4” (8.3 cm) H (without Delrin brackets).
The Power/Data Supply Strip (A) rests (Delrin bracket, B) on and clips (hand-retractable spring plunger, C) into the main frame.
D) Power connection
E) Data connections

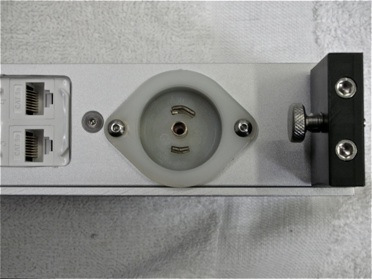

End detail with Delrin bracket and hand-retractable spring plunger.

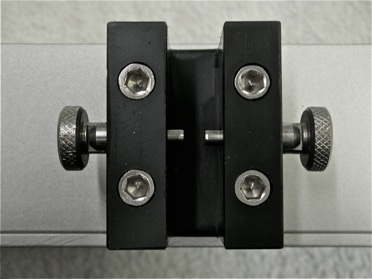

Middle detail with Delrin bracket and hand-retractable spring plungers.
A
B
C
D
A
B
C
C
E
A
E
E

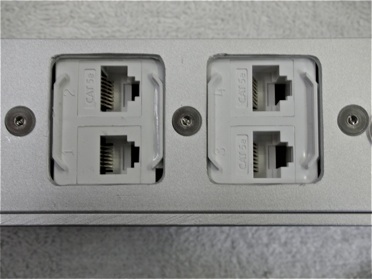

Detail with Data connections.
